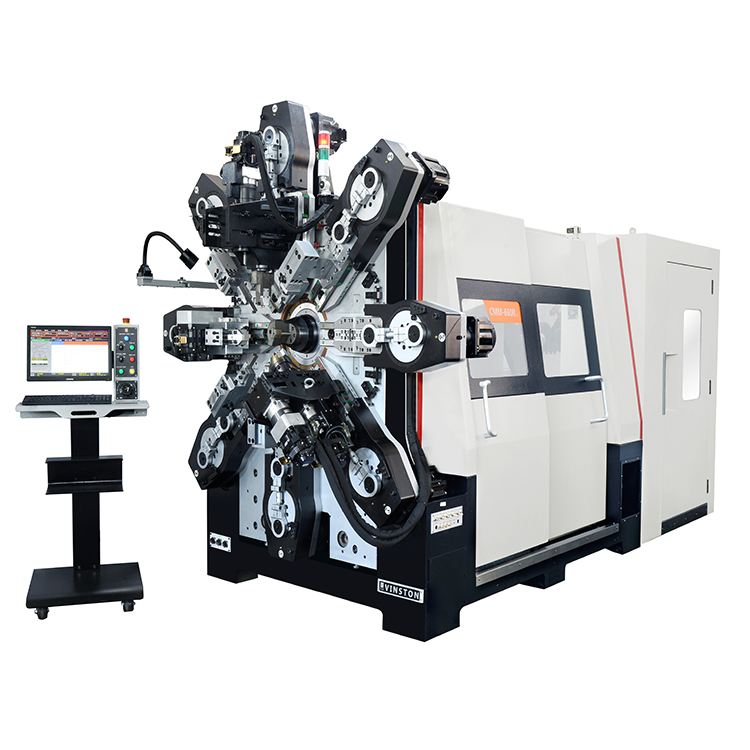

CMM-12-450R Spring Machine
- Model： CMM-12-450R
- Introduction： Special camless design equipped with Vinston’s free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.
- Spec： Special camless design equipped with Vinston’s free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.
Product Advantage
1、Windows based operating system.
2、Advance attachments such as rotary wire, spinner, and the x-y free arm can be optionally equipped to the machine.
3、Intuitive graphics user interface is based on Windows and its crash free
4、Characteristic is due to the employment of a bullet proof software engineering methodology. This makes learning and configuring highly complex springs a simple task.
5、Commonly use in the industries of: automobile, wire forms, entertainment and fitness.
Technical Parameters
| MODEL | CMM-12-450R | |
| Wire Dia. | 1.2-4.5mm | |
| Max. Wire Feed | 10000.00mm | |
| Min. Wire Feed | 0.01mm | |
| Max. Wire Feed Speed | 30m/min | |
| Max. Wire Feed Length | Unlimited | |
| Number Of Axes | 13 | |
| Power | 49.7KW | |
| Voltage | 220V(Customizable) | |
| Software | Industrial Grade Computer | |
| Program Storage | 2500 | |
| Air Compresser System | Air pressure | 5-6KG/cm |
| Air cylinder | 3pcs | |
| Dimensions | Depth | 2200mm |
| Width | 1760mm | |
| Height | 2100mm | |
| Machine Weight | 3800KG | |
